Science and Technology Log:
Below are the numbers that Johanna (my fellow Teacher at Sea) put together at the end of our mission.
We completed 44 hauls in our leg of the survey and caught approximately 118,474 pollock. All of those pollock weighed a collective 24,979.92 kg (= 25 tons)! Last year’s official total allowable catch (called a quota) for all commercial fishermen in Alaska was 1.17 million tons!
So, we only caught 25 tons/ 1,170,000 tons = 0.00002 = 0.002% of the yearly catch in our study.
The estimated population of pollock in the Bering Sea is 10 million tons (10,000,000 T). This means we caught only 0.00025% of the entire pollock population!
So, as you can see, in the big picture, our sampling for scientific analysis is quite TINY!
Continuing with more cool pollock data…
We identified 7,276 males and 7,145 females (and 2,219 were left unsexed)
We measured 16,640 pollock lengths on the Ichthystick!
Pollock lengths ranged from 9cm to 74cm
We measured 260 lengths of non-pollock species (mostly jellyfish, pacific herring, and pacific cod)
We collected 1,029 otoliths for analysis
After two full days of travel including a long red-eye flight across country, I am back in Ft Lauderdale, Florida. I had the most incredible experience as a NOAA Teacher at Sea on the Oscar Dyson! The trip was absolutely amazing! Here are some parting shots taken on my last day in Dutch Harbor, Alaska.
In closing, I would like to thank a few people. The NOAA Corps officers and deck crew are wonderful and do a great job running a tight ship. I would like to thank them all for keeping me safe, warm, dry, and well fed while out at sea. They all made me feel right at home.
The NOAA scientists Taina, Kresimir, Rick and Darin did a fabulous job patiently explaining the science occurring onboard and I appreciate them letting me become a part of the team! I loved immersing myself back in the practice of real scientific inquiry and research!
I would like to thank the NOAA Teacher at Sea program for allowing me to take part in this incredible research experience for teachers! Teachers and students in my district are very excited to hear about my experiences and I look forward to continuing to share with them about NOAA Teacher at Sea! Sign me up, and I’d be happy to “set sail” with NOAA again.
Finally, I would like to thank my readers. I truly enjoyed sharing my experiences with you and hope that, through my blog, you were able to experience a bit of the Bering Sea with me.
Latitude: 53°54’41” N
Longitude: 166°30’61” E
Ship speed: 0 knots (0 mph) In Captains Bay at Dutch Harbor during calibration.
Weather Data from the Bridge
Wind Speed: 17 knots (19.5 mph)
Wind Direction: 184°
Wave Height: 1-2 ft
Surface Water Temperature: 10.2°C (50.4°F)
Air Temperature: 12.5°C (54.5°F)
Barometric Pressure: 1005.9 millibars (0.99 atm)
Science and Technology Log:
Imagine a time when fish surveys could be done through remote sensing, thus eliminating the need to catch fish via trawling to verify fish school composition, length, weight, and age data. During our “Leg 3” of the Alaska Pollock Acoustic Midwater Trawl Survey, we caught, sorted, sexed, and measured 25 tons of pollock! While this amounts to only 0.002% of the entire pollock quota and 0.00025% of the pollock population, wouldn’t it be nice if we could determine the pollock population without killing as many fish?
Introducing the “Cam-Trawl,” a camera-in-net technology that NOAA scientists Kresimir and Rick are developing to eventually reduce, if not eliminate, the need to collect biological specimens to verify acoustic data. Cam-Trawl consists of a pair of calibrated cameras slightly offset so the result is a stereo-camera.
The importance of setting up a stereo-camera is so you can use the slightly different pictures taken at the same time from each camera to calculate length of the fish in the pictures. Eventually, a computer system might use complex algorithms to count and measure length of the fish that pass by the camera. If the kinks are worked out, the trawl net would be deployed with the codend open, allowing fish to enter the net and flow past the camera to have their picture taken before swimming out of the open end of the net. Some trawls would still require keeping the codend closed to determine gender ratios and weights for extrapolation calculations; however, the use of Cam-Trawl would significantly reduce the amount of pollock that see the fish lab of the Oscar Dyson. On this leg of the survey, the NOAA scientists installed the Cam-Trawl in a couple of different locations along the trawl net to determine where it might work best.
Below are some photos taken by Cam-Trawl of fish inside the AWT trawl net. Remember, there are two cameras installed as a stereo-camera that create two images that are taken at slightly different angles. In the photos below, I only picked one of the two images to show. In the video that follows, you can see how scientists use BOTH photos to calculate the lengths of the fish captured on camera.
Another NOAA innovation using stereo cameras is called “Trigger-Cam.” Trigger-Cam is installed into a crab pot to allow it to sit on the ocean floor. For this type of camera deployment, the NOAA scientists removed the crab pot net so they would not catch anything except pictures.
The real innovation in the Trigger-Cam is the ability to only take pictures when fish are present. Deep-water fish, in general, do not see red light. The Trigger-Cam leverages this by using a red LED to check for the presence of fish. If the fish come close enough, white LEDs are used as the flash to capture the image by the cameras.
The beauty of this system is that it uses existing fishing gear that crab fishermen are familiar with, so it will be easily deployable. Another stroke of brilliance is that the entire device will cost less than $3,000. This includes the two cameras, lights, onboard computer, nickel-metal hydride batteries, and a pressure housing capable of withstanding pressures of up to 50 atmospheres (500 meters) as tested on the Oscar Dyson! Here is a short animated PowerPoint that explains how Trigger-Cam works. Enjoy!
Here are a couple of picture captured by the Trigger-Cam during trials!
While these pictures were captured during tests in Dutch Harbor, they do provide proof-of-concept in this design. With a cheap, easily deployable and retrievable stereo-camera system that utilized fishing gear familiar to most deck hands, Trigger-Cams might contribute to NOAA’s future technology to passively survey fish populations.
A little fun at sea! We needed to do one last CTD (Conductivity, Temperature, Depth), and decided to lower the CTD over deep water down to 500 meters (1,640.42 ft)! Pressures increases 1 atmosphere for every 10 meters in depth. At 500 meters, the pressure is at 50 atmospheres!!! We wondered what would happen if… we took styrofoam cups down to that depth. We all decorated our cups and put them in a net mesh bag before they took the plunge. Here is a picture showing what 50 atmospheres of pressure will do to a styrofoam cup!
We missed the Summer Olympics while out on the Bering Sea. T-T We did get in the Olympic spirit and had a race or two. Here is a little video in the spirit of the Olympics…
All for now… We are back in Captains Bay, Dutch Harbor, but are calibrating the hydroacoustic equipment at anchor. Calibration involves suspending a solid copper sphere below the ship while the NOAA scientists check and fine-tune the different transducers. This process will take about 7 hours! We have been out at sea for 3 weeks, are currently surrounded by land, but must wait patiently to finish this last and very important scientific task. If the calibration is off, it could skew the data and result in an inaccurate population estimation and quotas that may not be sustainable! This Landlubber can’t wait to have his feet back on terra firma. The thought of swimming crossed my mind, but I think I’ll wait. Then we will see if I get Land Sickness from being out at sea for so long…
Latitude: 60°25’90” N
Longitude: 177°28’76” W
Ship speed: 3 knots (3.45 mph)
Weather Data from the Bridge
Wind Speed: 5 knots (5.75 mph)
Wind Direction: 45°
Wave Height: 2-4 ft with a 2 ft swell
Surface Water Temperature: 8.6°C (47.5 °F)
Air Temperature: 8°C (46.4 °F)
Barometric Pressure: 1019 millibars (1 atm)
Science and Technology Log:
In my last blog, we learned about how the scientists onboard the Oscar Dyson use some very sophisticated echo-location SONAR equipment to survey the Walleye pollock population.
Can the Walleye pollock hear the “pings” from the SONAR?
No. Unlike in the movies like “The Hunt for Red October” where submarines are using sound within the human audible range to “ping” their targets, the SONAR onboard the Oscar Dyson operates at frequencies higher than both the human and fish range of hearing. The frequency used for most data collection is 38 kHz. Human hearing ranges from 20 Hz to 20 kHz. Walleye pollock can hear up to 900 Hz. So, the pollock cannot hear the SONAR used to locate them…
Can the Walleye pollock hear the ship coming?
Normally, YES! Fish easily hear the low frequency noises emitted from ships.
If you are operating a research vessel trying to get an accurate estimate on how many fish are in a population, and those fish are avoiding you because they hear you coming, you will end up with artificially low populations estimates! The International Council for the Exploration of the Seas (ICES) established noise limits for research vessels that must be met in order to monitor fish populations without affecting their behavior. Fish normally react to a threat by diving, and that reduces their reflectivity or target strength, which reduces the total amount of backscatter and results in lower population estimates (see my last blog).
That is why NOAA has invested in noise-reducing technology for their fish survey fleet. The Oscar Dyson was the first of five ships build with noise-reducing technology. These high-tech ships have numerous strategies for reducing noise in the range that fish might hear.
There are two main sources of engine noise onboard a ship: machinery noise and propeller noise.
The best acoustic ship designs are going to address the following:
1) Address hydrodynamics with unique hull and propeller design.
2) Use inherently quiet equipment and choose rotating rather than reciprocating equipment.
3) Use dynamically stiff foundations for all equipment (vibration isolation).
4) Place noisier equipment toward the centerline of the ship.
5) Use double-hulls or place tanks (ballast and fuel tanks) outboard of the engine room to help isolate engine noise.
6) Use diesel electric motors (diesel motors operate as generators while electric motors run the driveshaft.
The U.S. Navy designed the Oscar Dyson’s hull and propeller for noise quieting. This propeller is designed to eliminate cavitation at or above the 11 knot survey speed. Not only does cavitation create noise, it can damage the propeller blades.
The Oscar Dyson’s hull has three distinguishing characteristics which increase its hydrodynamics and reduce noise by eliminating bubble sweep-down along the hull. The Oscar Dyson has no bulbous bow, has a raked keel line that descends bow to stern, and has streamlined hydrodynamic flow to the propeller.
To reduce a ship’s noise in the water, it is absolutely crucial to control vibration. The Oscar Dyson has four Caterpillar diesel gensets installed on double-stage vibration isolation systems. In fact, any reciprocating equipment onboard the Oscar Dyson is installed on a double-stage vibration isolation system using elastomeric marine-grade mounts.
Since the diesel engines are mounted on vibration isolation stages, it is necessary to also incorporate flexible couplings for all pipes and hoses connecting to these engines.
Any equipment with rotating parts is isolated with a single-stage vibration system. This includes equipment like the HVAC, the electric generators for the hydraulic pumps, and the fuel centrifuges that remove any water and/or particles from the fuel before the fuel is pumped to the diesel generators.
Low Noise Equipment:
The only equipment that does not use vibration isolation stages are the two Italian-made ASIRobicon electric motors that are mounted in line with the prop shaft. Both are hard-mounted directly to the ship because they are inherently low-noise motors. This is one of the benefits of using a diesel-electric hybrid system. The diesel motors can be isolated in the center of the ship, near the centerline and away from the stern. The electric motors can be located wherever they are needed since they are low noise.
Even the propeller shaft bearings are special water-lubricated bearings chosen because they have a low coefficient of friction and superior hydrodynamic performance at lower shaft speeds resulting in very quiet operation. They use water as a lubricant instead of oil so there is a zero risk of any oil pollution from the stern tube.
Acoustic Insulation and Damping Tiles:
The Oscar Dyson uses an acoustic insulation on the perimeter of the engine room and other noisy spaces. This insulation has a base material of either fiberglass or mineral wool. The middle layer is made of a high transmission loss material of limp mass such as leaded vinyl.
The Oscar Dyson also has 16 tons of damping tiles applied to the hull and bulkheads to reduce noise.
All of these noise-reducing efforts results in a fully ICES compliant research vessel able to survey fish and marine mammal populations with minimal disturbance. This will help set new baselines for population estimates nationally and internationally.
As you can see from the graph above, The Oscar Dyson is much quieter than the Miller Freeman, the ship that it is replacing. You can see the differences in the hull design from the picture below.
Next blog, I will write about new, cutting edge technology that might reduce the need for biological trawling to verify species.
Special thanks to Chief Marine Engineer Brent Jones for the tour of the engineering deck and engine room, and for the conversations explaining some of the technology that keeps the Oscar Dyson going.
I found out drills aboard ships are serious business! Unlike a fire drill at school where students meander across the street and wait for an “all clear” bell to send them meandering back to class, fire drills on a ship are carefully executed scenarios where all crew members perform very specific tasks. When out at sea, you cannot call the fire department to rescue you and put out a fire. The crew must be self-reliant and trained to address any emergency that arises. When we had a fire drill, I received permission from Commanding Officer Boland to leave my post (after I checked in) and watch as the crew moved through the ship to locate and isolate the fire. They even used a canister of simulated smoke to reduce visibility in the halls similar to what would be experienced in a real fire!
Late last night, we finished running our transects! Our last trawl on transect was a bottom trawl which brought up some crazy creatures! Here are a couple of photos of some of the critters we found.
Next blog will probably be my last from Alaska. T-T
Latitude: 60°55’68” N
Longitude: 179°34’49” E
Ship speed: 11 knots (12.7 mph)
Weather Data from the Bridge
Wind Speed: 10 knots (11.5 mph)
Wind Direction: 300°
Wave Height: 2-4 ft with a 4-6 ft swell
Surface Water Temperature: 8.7°C (47.6°F)
Air Temperature: 8°C (46.4°F)
Barometric Pressure: 1013 millibars (1 atm)
Science and Technology Log
Previously, we learned how the biological trawl data onboard the NOAA Research Vessel Oscar Dyson are collected and analyzed to help calculate biomass of the entire Bering Sea Walleye pollock population. Last blog, I mentioned that the scientific method for estimating the total pollock biomass is not complete without acoustics data, more specifically hydroacoustics! In fact, hydroacoustic data are the real key to estimating how many pollock are in the Bering Sea! That is why our mission is called the Alaskan Pollock Midwater ACOUSTIC-trawl Survey.
The Oscar Dyson is using hydroacoustics to collect data on the schools of fish in the water below us, but we do not know the composition of those schools. Hydroacoustics give us a proxy for the quantity of fish, but we need a closer look. The trawl data provide a sample from each aggregation of schools and allow the NOAA scientists that closer look. The trawl data explain the composition of each school by age, gender and species distribution. Basically, the trawl data verifies and validates the hydroacoustic data. The hydroacoustics data collected over the entire Bering Sea in systematic transects combined with the validating biological data from the numerous individual trawls give scientists a very good estimate for the entire Walleye pollock population in the Bering Sea.
So what is hydroacoustics and how does it work???
Hydroacoustics (“hydro” = water, “acoustics” = sound) is the field of study that deals with underwater sound. Remember, sound is a form of energy that travels in pressure waves. Sound travels roughly 4.3 times faster in water than in air (depending on temperature and salinity of the water). Here is a link with an interactive animation comparing the speed of sound in water, air, and steel! This change in speed will become very important later… keep reading!
Lower sound frequencies travel farther. This is how humpback whales can communicate over great distances with their whale songs! Click on whale songs to hear one!
Whales are not the only aquatic organisms to use sound! Much like dolphins use sound to echo-locate, people use technology to “see” under water using sound energy. We call this technology SONAR (Sound Navigation And Ranging).
On a typical recreational watercraft, this technology can be found in the form of a “fish-finder.”
In commercial fishing, this technology is used in much the same way, just on a larger scale. Here is an animation showing a commercial trawler using SONAR to locate fish.
The Oscar Dyson has a much more powerful, extremely sensitive, carefully calibrated, scientific version of what many people have on their bass boats. These are mounted on the pod, which is on the bottom of the centerboard, the lowest part of the ship. The Oscar Dyson has an entire suite of SONAR instrumentation including the five SIMRAD EK60 transducers located on the bottom of the centerboard that operate at different Khertz, the SIMRAD ME70 multibeam transducer located on the hull, and a pair of SIMRAD ITI transducers on the trailing edge of the centerboard (one pointed toward the starboard side, the other toward port).
This “fish-finder” technology works by emitting a sound wave at a particular frequency and waiting for the sound wave to bounce back (the echo) at the same frequency. The time between sending and receiving the sound wave determines how far away an object is, whether it be the bottom or fish. When the sound waves return from a school of fish, the strength of the returning echo helps determine the fish density (how many fish are there).
Another piece of the puzzle… how reflective an individual fish is to sound waves. This is called target strength. Each fish reflects sound energy sent from the transducers, but why? For fish, we rely on the swim bladder, the organ that fish use to stay buoyant in the water column. Since it is filled with air, it reflects sound very well. When the sound energy goes from one medium to another, there is a stronger reflection of that sound energy. The bigger the fish, the bigger the swim bladder; the bigger the swim bladder, the more sound is reflected and received by the transducer. We call this backscatter, or target strength, and use it to estimate the size of the fish we are detecting. This is why fish that have air-filled swim bladders show up nicely on hydroacoustic data while fish that lack swim bladders (like sharks), or that have oil or wax filled swim bladders (like Orange Roughy) have weak signals.
Target strength is how we determine how dense the fish are in a particular school. Scientists take the backscatter that we measure from the transducers and divide that by the target strength for an individual and that gives you the number of individuals that must be there to produce that amount of backscatter. 100 fish produce 100x more echo than a single fish. We extrapolate this information to all the area of the Bering Sea to estimate the pollock population.
So the goal is to measure the hydroacoustic density along each transect and extrapolate that data to represent the entire survey area between transects (the area not sampled because the Oscar Dyson can’t cover every square meter of the Bering Sea). When you combine the hydroacoustic data for all of the 30 transects (a total of ~5,000 nautical miles in an area of 100,000 square nautical miles) and the lengths collected in the biological trawl data, you can convert the length data into target strength data to create a distribution of target strengths and find the average target strength for the population. In doing so, you get a complete picture of the Walleye pollock population in the Bering Sea.
But there’s more!!! Scientists ALSO use hydroacoustic data when trawling to determine if they have caught a large enough sample size to collect fish length data to validate their target strength data. If you recall reading my first blog from sea that taught about the parts of the net, I wrote about and had a drawing of the “kite” on which the “turtle” was attached. The “turtle” is a SIMRAD FS70 trawl SONAR. It has a downward facing transponder that shows a digital “picture” of the size of the net opening. You can also see individual fish and/or schools of fish enter the net by watching this display. Since the scientists only need about 300 fish for a statistically significant sample, they watch this screen carefully so that they do not take more fish than they need. When the lead scientist thinks there are enough fish in the net, she gives the request to the Officer on Deck to “haul back.” Unlike commercial trawlers, a typical trawl on the Oscar Dyson only lasts 25 minutes. Sometimes, we are only officially fishing for 5 minutes if we pull through a large school.
What are the data telling us?
The Walleye pollock data suggest that the population is currently stable; however, there is some evidence of pollock in waters that have traditionally been north of their uppermost documented population range. Are warmer waters due to climate change to blame for this possible shift? Here is an interesting article that addresses this issue and raises several other trends regarding pollock population response to changes in food source and predation due to climate change. Click on the picture to open the article!
The economic and ecological implications of a shifting pollock population range are a bit unsettling. Fish do not know political boundaries. As the pollock population range possibly shifts north, more of that range will lie within Russian waters than in previous years. This may hurt the U.S. commercial fishing industry as they settle for less of a resource that was once abundant. Since quotas are set based on last year’s numbers, there is a time lag which may result in overfishing in U.S. waters that might lead to a collapse in the Alaskan Walleye pollock fishing industry. The U.S. has invested a tremendous amount of research into maintaining a sustainable pollock fishery. Other countries may be responding to a variety of factors in which sustainability is just one when they are managing pollock stocks and setting catch quotas. Since pollock is a trans-boundary stock, this could lead to greater uncertainty in management of the entire population if pollock increasingly colonize more northern Bering Sea waters as influenced by climate change.
Food for thought…
Next blog, we will learn about cutting edge technology that may eventually make hauling back fish and collecting biological fish data on board the acoustic survey missions obsolete.
It’s tomorrow, TODAY! This morning at 6am Alaska Time, we crossed the International Date Line (IDL). The IDL is at 180° longitude. General Vessel Assistant Brian Kibler and I went out to the bow of the ship so we would be the first onboard to cross the line!
Over the next two days, our transects take us back and forth over the IDL 3 more times. Fortunately, onboard our Oscar Dyson time warp machine we simply observe the Alaska Time Zone (the time zone from our port of call). With everyone onboard operating different shifts, and with 24/7 operations, it would be quite confusing if we kept changing our clocks to observe the local time zone.
Mariners who cross the IDL when at sea are inducted into the “Order of the Golden Dragon” and receive a certificate with the details of this momentous crossing. There are several other notorious crossing that receive special recognition. They are:
▪ The Order of the Blue Nose for sailors who have crossed the Arctic Circle.
▪ The Order of the Red Nose for sailors who have crossed the Antarctic Circle.
▪ The Order of the Ditch for sailors who have passed through the Panama Canal.
▪ The Order of the Rock for sailors who have transited the Strait of Gibraltar.
▪ The Safari to Suez for sailors who have passed through the Suez Canal.
▪ The Order of the Shellback for sailors who have crossed the Equator.
▪ The Golden Shellback for sailors who have crossed the point where the Equator crosses the International Date Line.
▪ The Emerald Shellback or Royal Diamond Shellback for sailors who cross at 0 degrees off the coast of West Africa (where the Equator crosses the Prime Meridian)
▪ The Realm of the Czars for sailors who crossed into the Black Sea.
▪ The Order of Magellan for sailors who circumnavigated the earth.
▪ The Order of the Lakes for sailors who have sailed on all five Great Lakes.
Latitude: 61°12’61” N
Longitude: 178°27’175″ W
Ship speed: 11.6 knots (13.3 mph)
Weather Data from the Bridge
Wind Speed: 11 knots (12.7 mph)
Wind Direction: 193°
Wave Height: 2-4 ft (0.6 – 1.2 m)
Surface Water Temperature: 8.3°C ( 47°F)
Air Temperature: 8.5°C (47.3°F)
Barometric Pressure: 999.98 millibars (0.99 atm)
Science and Technology Log
At the end of last blog, I asked the question, “What do you do with all these fish data?”
The easy answer is… try and determine how many fish are in the sea. That way, you can establish sustainable fishing limits. But there is a little more to the story…
Historically, all fisheries data were based on length. It is a lot easier to measure the length of a fish than to accurately determine its weight on a ship at sea. To accurately measure weight on a ship, you have to have special scales that account for the changes in weight due to the up and down motion of the ship. Similar to riding a roller coaster, at the crest of a wave (or top of a hill on a roller coaster), the fish would appear to weigh less as it experiences less gravitational force. At the trough of a wave (or bottom of a hill on a roller coaster), the fish would experience more gravitational force and appear to weigh more. Motion compensating scales are a more recent invention, so, historically, it was easier to just measure lengths.
For fisheries management purposes, however, you want to be able to determine the mass of each fish in your sample and inevitably the biomass of the entire fishery in order to decide on quotas to determine a sustainable fishing rate. So, you need to be able to use length data to estimate mass. Here is where science and math come to the rescue! By taking a random sample that is large enough to be statistically significant, and by using the actual length and weight data from that sample, you can create a model to represent the entire population. In doing so, you can use the model for estimating weights even if all you know is the lengths of the fish that you sample. Then you can extrapolate that data (using the analysis of your acoustic data – more on this later) to determine the entire size of the pollock biomass in the Bering Sea.

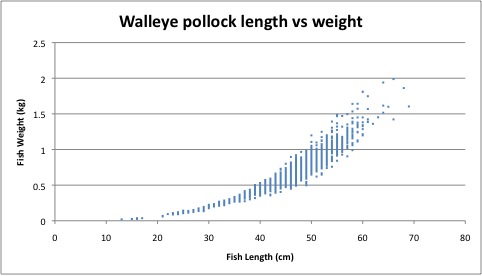

How do they do that? First, you analyze and plot the actual lengths vs. weights of your random sample and your result is a scatter-plot diagram that appears to be an exponential curve.

Then you create a linear model by log-transforming the data. This gives you a straight line.
Next, you back-transform the data into linear space (instead of log space) and you will have created a model for estimating weight of pollock if all you know are the lengths of the fish. This is close to a cubic expansion which makes sense because you are going from a one-dimensional measurement (length) to a 3-dimensional measurement (volume).
Scientists can now use this line to predict weights from all of their fish samples and then extrapolate to determine the entire biomass of Walleye pollock population in the Bering Sea (when combined with acoustic data… coming up in the next blog!) when the majority of the data collected is only fish lengths.
Another interesting question… How does length change with age? Fish get bigger as they get older, all the way until they die, which is different from mammals and birds. However, some individual fish grow faster than others, so the relationship between age and length gets a little complicated. How do you determine the age distribution of an entire population when all you are collecting are lengths?
Just like weight, you can determine the age from a subset of fish and apply your results to the rest. This works great with young fish that are one year old. The problem is… once you get beyond a one-year-old fish, using lengths alone to determine age becomes a little sketchy. Different fish may have had a better life than others (environmental/ecological effects) and had plenty to eat, great growing conditions, etc and be big for their age relative to the rest of the population. Some may have had less to eat and/or unfavorable conditions such as high parasite loads leading them to be smaller… There are also other things to consider such as genetics that affect length and growth rate of individuals. Here is where the collection of otoliths becomes important. By collecting the otoliths with the lengths, weights, and gender data, the scientists can look at the age distributions within the population. The graph below shows that if a pollock is 15 cm long, it is clearly a 1 year old fish. If a pollock is 30 cm long, it might be a 2 year old, a 3 year old, or a 4 year old fish, but about 90% of fish at this length will be 3 years old. If a fish is 55 cm long, it could be anywhere from 6 to 10+ years old!
Collection of otoliths is the only way to accurately determine the age of the fish in the random sample and be able to extrapolate that data to determine the estimated age of all the pollock in the fishery. Here is a photo comparing otolith size of Walleye pollock with their lengths.
If we wanted to find out exactly how old each of these fish were, we would need to break the otoliths in half to look at a cross section. Below is what a prepared otolith looks like (courtesy of Alaska Fisheries Science Center). You can try counting rings yourself at their interactive otolith activity found here.
All of these data go into a much more complicated model (including the acoustic-trawl survey walleye pollock population estimates) to accurately estimate the total size of the fishery and set the quotas for the pollock fishing industry so that the fishery is maintained in a sustainable manner.
Next blog, we will learn about how the various ways acoustic data fit into this equation to create the pollock fishery model!
